ADG619BRMZ
ADG619BRMZ
ADG619BRMZ

ADG619BRMZ

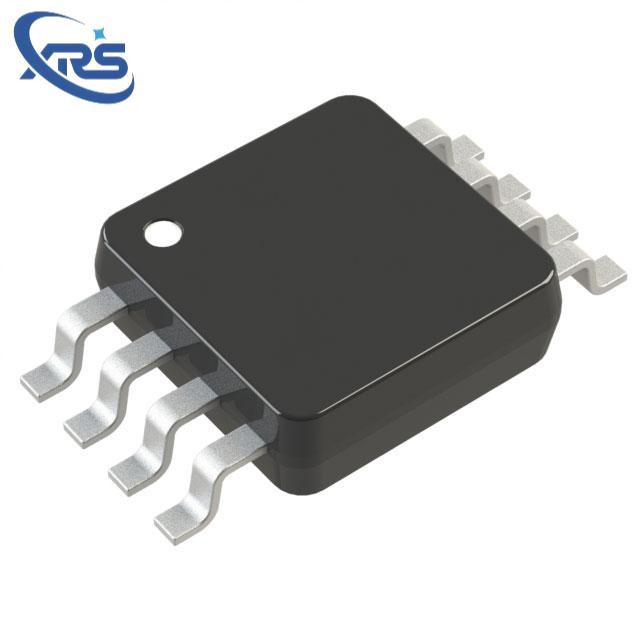

Analog Devices Inc.'s ADG619BRMZ is an analog switch integrated circuit that operates within a single supply voltage range of 2.7V to 5.5V. It has a channel capacitance of 25 pF and a -3dB bandwidth of 190 MHz. The integrated circuit functions between -40°C and 85°C and provides a maximum leakage current of 250 pA. It is packaged in tubes and is intended for surface mount applications.

Send Inquiry

Description

Product parameter

Type	Parameter
Category	Integrated Circuits (ICs) - Analog Switch ICs
Manufacturer	Analog Devices Inc.
Packaging	Tube
Switch Circuit	SPDT (Single Pole Double Throw)
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	6.5 Ohms
Channel-to-Channel Matching (ΔRon)	700 mOhms
Voltage - Supply, Single (V+)	2.7V to 5.5V
Voltage - Supply, Dual (V±)	±2.7V to 5.5V
Switch Time (Ton, Toff) (Max)	120 ns, 75 ns
-3dB Bandwidth	190 MHz
Charge Injection	110 pC
Channel Capacitance (CS(off), CD(off))	25 pF
Current - Leakage (IS(off)) (Max)	250 pA
Crosstalk	-67 dB @ 1 MHz
Operating Temperature	-40°C to 85°C
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
Base Product Number	ADG619

View more similar products

Key Features

Flexible Supply Voltage Range

The ADG619BRMZ supports a single supply voltage from 2.7 V to 5.5 V or a dual supply configuration of ±2.7 V to ±5.5 V. This flexibility makes it adaptable to a wide range of applications and power requirements.

Low On-Resistance and Flatness

The device offers a maximum on-resistance of 6.5 Ω and an on-resistance flatness of 0.8 Ω, ensuring minimal signal distortion and high performance in signal switching applications.

Rail-to-Rail Operation and Low Power Consumption

It operates rail-to-rail, allowing the signal to swing across the full supply range, and features very low power consumption (<0.1 μW), making it ideal for energy-efficient and battery-powered devices.

TTL-/CMOS-Compatible Inputs and Wide Temperature Range

This model can function consistently in a temperature range of -40°C to +85°C and is compatible with both TTL and CMOS logic levels, making it suitable for use in a variety of hostile environments and digital systems.

Packaging Details

The ADG619BRMZ is designed in a surface-mount configuration, specifically in an 8-MSOP (Mini Small Outline Package) with the following dimensions:
Height: 850 μm

Length: 3 mm

Width: 3 mm
This compact size is ideal for space-constrained applications. With a terminal pitch of 0.65 mm, the package ensures accurate soldering and positioning on the PCB. The ADG619BRMZ is also RoHS3 compliant, meeting environmental standards for hazardous substances.
