Clock Synthesizer IC

It is common for modern systems to need to generate several distinct clock frequencies and allocate them to various tasks. Similar to a facilitator, a clock synthesizer multiplies one clock signal's speed by using clever signal processing to produce multiple speeds. Similar to how a single fundamental speed can have several associated speeds. Conversion rate is the property that has the ability to convert this speed. To help you grasp clock synthesizer-specific chips, we will then give examples of three common timing integrated circuits (ICs): ADF4159CCPZ, PT7C4511WEX, and SI5351A-B-GTR.

ADF4159CCPZ is a product of Analog Devices Co., Ltd. This integrated circuit is cutting edge and has advanced frequency synthesis capabilities. It operates steadily at different power levels within the 1.62V to 3.45V power supply voltage range. CMOS output signals are produced by this integrated circuit to meet various signal processing requirements. It works with inputs that are TTL or CMOS compatible.

With its surface mount installation design, ADF4159CCPZ can be easily integrated into a variety of electronic systems, enhancing the overall functionality of the circuit. Its operating temperature range of -40 °C to 125 °C allows it to endure a variety of environmental circumstances.

The ADF4159CCPZ has a maximum frequency of 13GHz, making it appropriate for high-frequency applications. The accurate frequency division and multiplication operations are made possible by its integrated frequency divider and multiplier.

With a 2:1 input to output ratio and a differential input and single-ended output, the ADF4159CPZ is capable of handling a wide range of signal requirements.

ADF4159CPZ is the suggested choice for applications requiring precise signal generation and accurate frequency synthesis in challenging environments. Due to its resilience, interoperability, and frequency range, it is a crucial component of contemporary signal processing applications.



The IC frequency multiplier PT7C44511WEX was created by Diodes Corporation. Clock/timing - clock generator is the category it falls under, with a maximum frequency of 180MHz. Its 3V to 5.5V operating voltage range ensures compatibility with a variety of functions. It can dependablely endure a broad range of conditions, with an operating temperature range of -40°C to 85°C. This product is ideal for surface mount devices and is packaged in an 8-SOIC package. Because of its accuracy and stability, this component is generally a good choice for applications requiring efficient frequency multiplication.

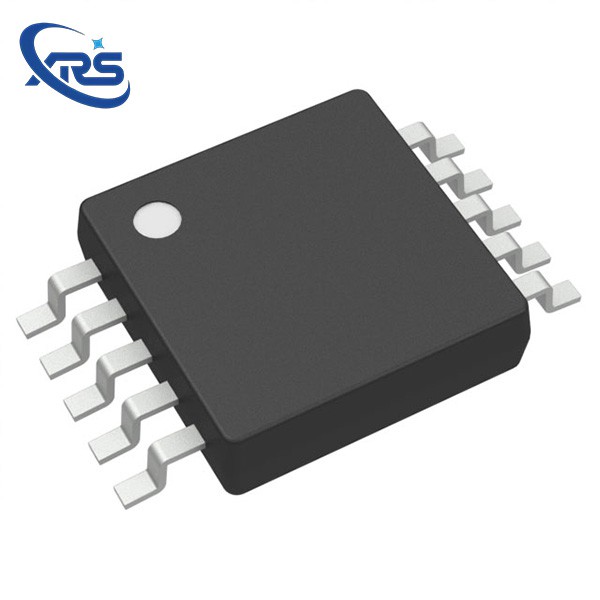

Clock/timing devices, such as the SI5351A-B-GTR clock generator chip, are specifically designed for accurate frequency control. The programmable frequency divider/multiplier feature enables efficient frequency management with a maximum output frequency of 200MHz. Its 1.71V to 3.6V operating voltage range allows it to be adjusted to different power supply conditions. The chip ensures dependable performance in a range of environmental conditions by operating efficiently between -40°C and 85°C. Small-space assembly is intended, and it comes pre-assembled in a convenient 10-TFSOP or 10-MSOP format.

In summary, the SI5351A-B-GTR is an essential component of applications requiring accuracy in clock generation because it blends stability and adaptability to achieve optimal performance.

So, how can we quickly and simply buy the necessary circuits? That's why our XRS company was founded--to solve this problem. Our dedication lies in offering our clients premium and reasonably priced electronic components that will undoubtedly satisfy them.

We have a large inventory of electronic components and support global shipping. And we make sure that the costs of premium imported chips are reasonable when compared to other procurement channels. Please get in touch with us if you're interested.We might create a cost-effective way for you to buy electronic parts!
