SPST Reed Relay
AQW214S
AQY210SX
CPC1008N

SPST Reed Relay

A Solid State Relay (SSR) with SPST configuration is like a high tech switch. It's a one-way switch that uses electrical signals instead of moving parts to turn things on or off. SSR is safer and more durable than ordinary switches, making it ideal for a variety of devices and appliances.

Send Inquiry

Description

The SPDT relay is referred to as a single-pole double-throw relay. It is commonly used for tasks like switching power sources or signals and operates similarly to a switch. It links two distinct locations to a single circuit.

For certain of them, such as AQW214EH, AQW214S, AQY210SX, and CPC1008N, there are more representative models available. Now let's discuss it in further detail.

Details of Popular Products

1. IXYS' CPC1008N solid state relay has been popular recently. Its specifications include: It is specially manufactured to increase performance and efficiency; the maximum resistance is 8 ohms. Due to its small 4-SOP package and surface mount capability, it is perfect with modern circuits. harmonize. This solid state relay is a flexible device that can handle AC and DC outputs with a load voltage range of 0V to 100V, with an input voltage of 1.2VDC.

CPC1008N

CPC1008N

2. AQW214 series: The AQW214 series released by Matsushita manufacturers, is relatively representative are related part numbers including AQW214S and AQW214EH. These electronic devices combine the benefits of SSR.

a.AQW214EH

The PhotoMOSTM AQW relay series includes the AQW214EH, which is a portable power station that can accept both AC and DC power. It can handle input voltages as low as 1.14VDC and load voltages between 0V and 400V. Supporting a maximum on-resistance of 35 ohms and a load current of 100 mA, all contained in an 8 DIP protection package, it safeguards the circuitry. PC pin terminals provide dependable connections, making them ideal for all of your electrical requirements.

AQW214EH

AQW214EH

b.AQW214S

Another model in the PhotoMOSTM AQW series, the AQW214S, is similar to the previous one but is stable with load voltages from 0 to 400V for AC and DC. Load current capacity is 80mA, and the maximum on-resistance is 50 ohms.

AQW214S

AQW214S

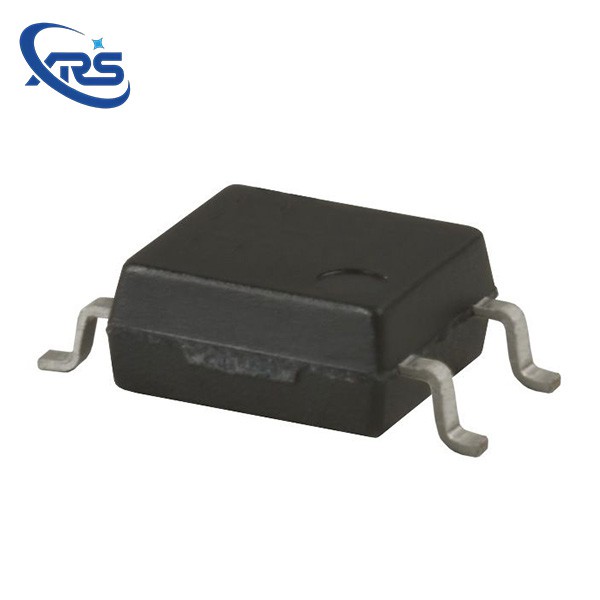

AQY210SX

3.This model is famous for its precision and versatility. When operated with an input voltage of 1.14VDC, AC and DC outputs can be controlled within a load voltage range of 0V to 350V. This 4-SOP package relay also features a 120mA load current capacity and a low 25 Ohm on-resistance. This relay has a spst-no (1 Form A) configuration, demonstrating Matsushita's commitment to providing reliable relay solutions for a range of electrical applications.

AQY210SX

AQY210SX

Our Company:

HK XRS Technology Limited, as a distributor of electronic components, mainly focus on providing a diverse range of electronic components, including ICs, LEDs, transistors, electronic parts accessories, modules, thermistors, capacitors, etc.

We have established deep cooperative relationships with many of our long-term clients.

We sincerely invite you to try to communicate with us, hoping to help every customer as much as possible within our capabilities. With HK XRS Technology Limited, anticipate competitive pricing, top-quality products, and unparalleled service tailored to your needs.

Our Strengths:

Product Quality Assurance: With more than 20 years of experience, we lawfully source components to give our clients authentic imported electronic parts. Our guiding principle is integrity; we never skimp on the good stuff.

Flexible Inspections: To make sure the products fulfil your requirements before shipping, we encourage additional pre-delivery inspections.

Secure Escrow Payments: We use HK INVENTORY and other platforms to carry out transactions in a secure manner. Following platform inspection, goods are dispatched. Quality-related refunds and exchanges are handled securely via the platform.

Assistance with International Shipping: Collaborating with well-known logistics companies guarantees safe packaging and effective international shipping.

Purchase of electronic components-Support institutional testing-XRS CO

FAQ

Q1: What's a SPST Relay?

A:Well, it's like this: imagine a relay with just one switch and one action – that's a single-pole single-throw (SPST) relay. Now, if you fancy having a relay with one switch but two different actions, meet the single-pole double-throw (SPDT) relay! It's like a relay with a split personality – one throw is open (NO) and the other is closed (NC).

Q2: SPDT, SPST, and DPDT – what's the scoop?

Here's the quick rundown:

- SPST (single pole single throw) has 2 terminals – like a simple on-off switch.

- SPDT (single pole double throw) gets a bit fancy with 3 terminals – it's like having two options in one.

- DPST (double pole single throw) steps it up with 4 terminals – it's like controlling two separate switches at once.

- DPDT (double pole double throw) takes it to the next level with 6 terminals – think of it as a switch that can juggle multiple tasks.

Q3: Why opt for a reed switch?

A: Reed switches provide direct and reliable sensing and activation capabilities. Their low profile design makes it easy for them to adapt to narrow spaces. In addition, they do not require electricity to operate. These advantages make reed switches an excellent choice for various finished product designs.

Q4: How do I use an SPST relay?

A:For tasks that require high amperage control with a low-amperage signal, an SPST (Single-Pole Single-Throw) relay is your tool. Picture it as a remote-controlled switch with five pins. Pin 30 is the entry point for high-amperage power. Applying a positive control signal to Pin 86 and grounding Pin 85 triggers the relay, connecting Pin 30 to Pin 87 and allowing current to flow.

To deactivate, just remove power from Pin 86 or disconnect the ground from Pin 85. This action breaks the connection between Pin 87 and 30, stopping the current flow.

In a nutshell, an SPST relay uses a low-amperage control signal to toggle high-amperage circuits on and off.

Q5: Do you offer post-purchase support in your company?

A:Absolutely, once your items are delivered, if you encounter any issues, don't hesitate to reach out to us. We're committed to assisting our customers to the best of our abilities in resolving any challenges they may face. If there are concerns about product quality or damages that occurred during transportation, we're open to discussions and can potentially facilitate return or exchange services based on mutual agreement.
